AI-Thinker A7 Hardware Gallery & Visual Breakdown
Comprehensive photographic reference featuring macro board breakdowns, pin annotations, commercial breakout shields, and live microcontroller wiring on the test bench.
Custom Photography Placeholder System
These reference photographs provide initial high-resolution visual guides across all 3 key hardware domains.
When you capture your own bench hardware photos, place your full-resolution files and web thumbnails into
images/.
Clicking any image below instantly opens the full-resolution view in an interactive lightbox modal.
Raw Hardware & Board Annotations
Top-down macro views and extreme close-ups of the AI-Thinker A7 dev board. Highlights the RDA8951G radio-frequency shield can, dual u.FL antenna receptacles, DC buck regulator circuit, and critical pin connections.

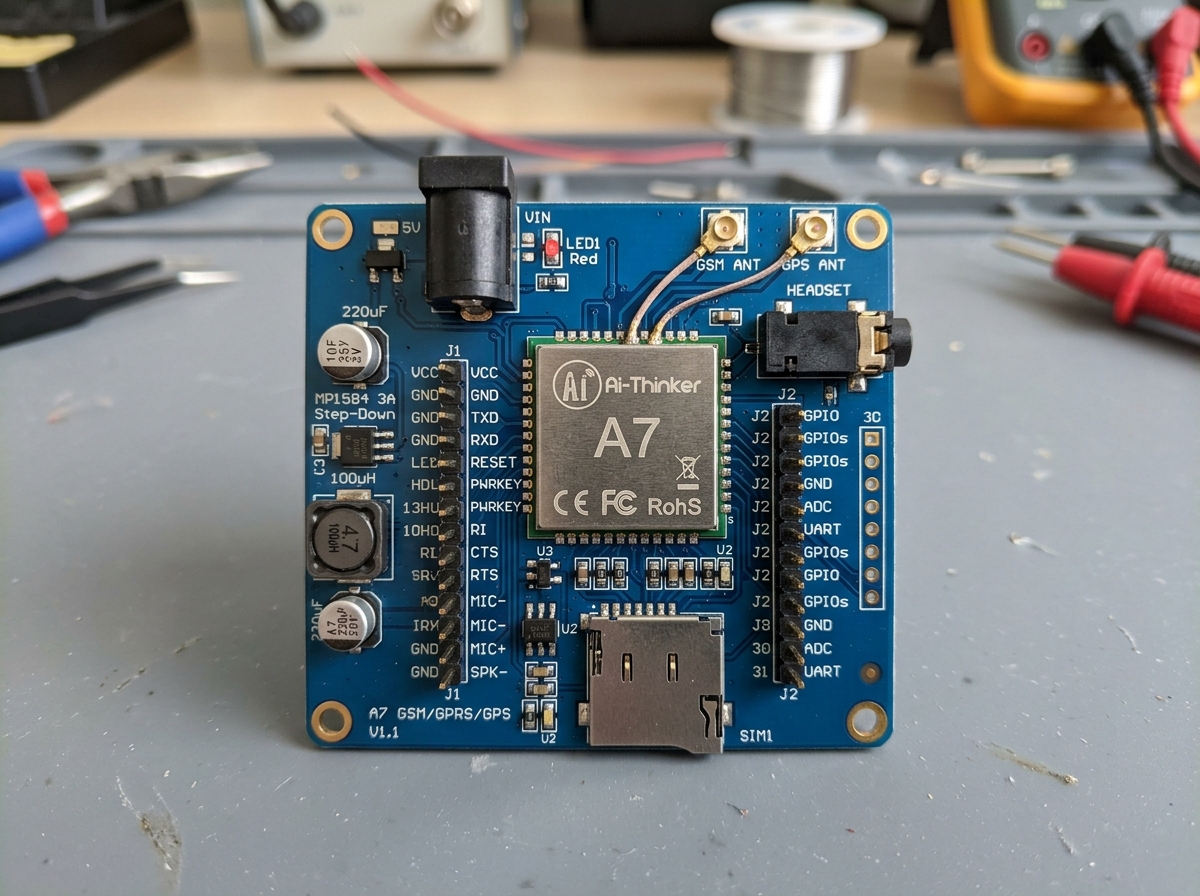

A7 Dev Board Top View & Pinout Breakdown
Top-down macro view of the RDA8951G core module, P1/P2 12-pin headers, dual u.FL RF ports, audio jacks, and power input pins.

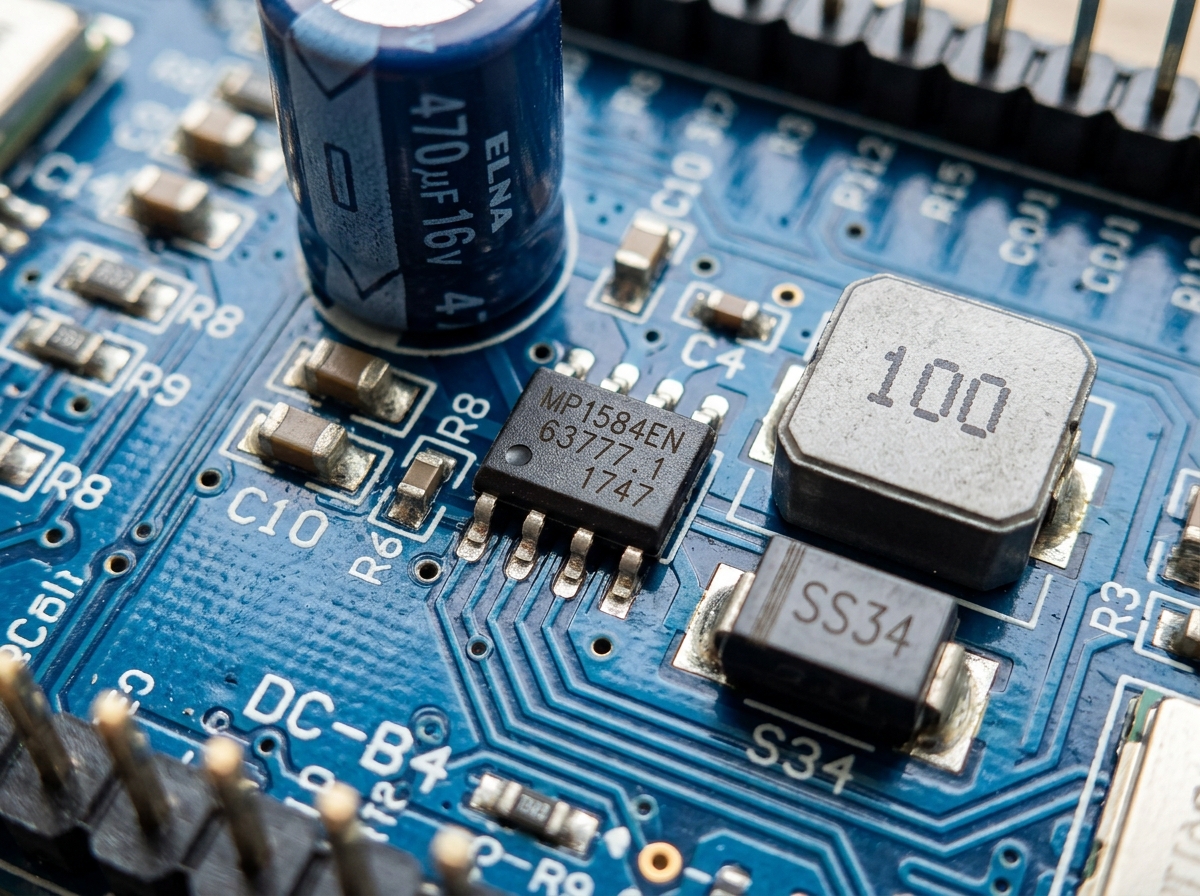

MP1584 Buck Regulator & 470µF Capacitor
Close-up view of the 5V-to-4.0V switching converter, 10µH power inductor, SS34 diode, and reservoir electrolytic capacitor.
Boards & Shields Using the A7
Commercial breakout hardware, stackable Arduino Uno/Mega development shields, and integrated telematics tracker PCBs built around the AI-Thinker A7 module.

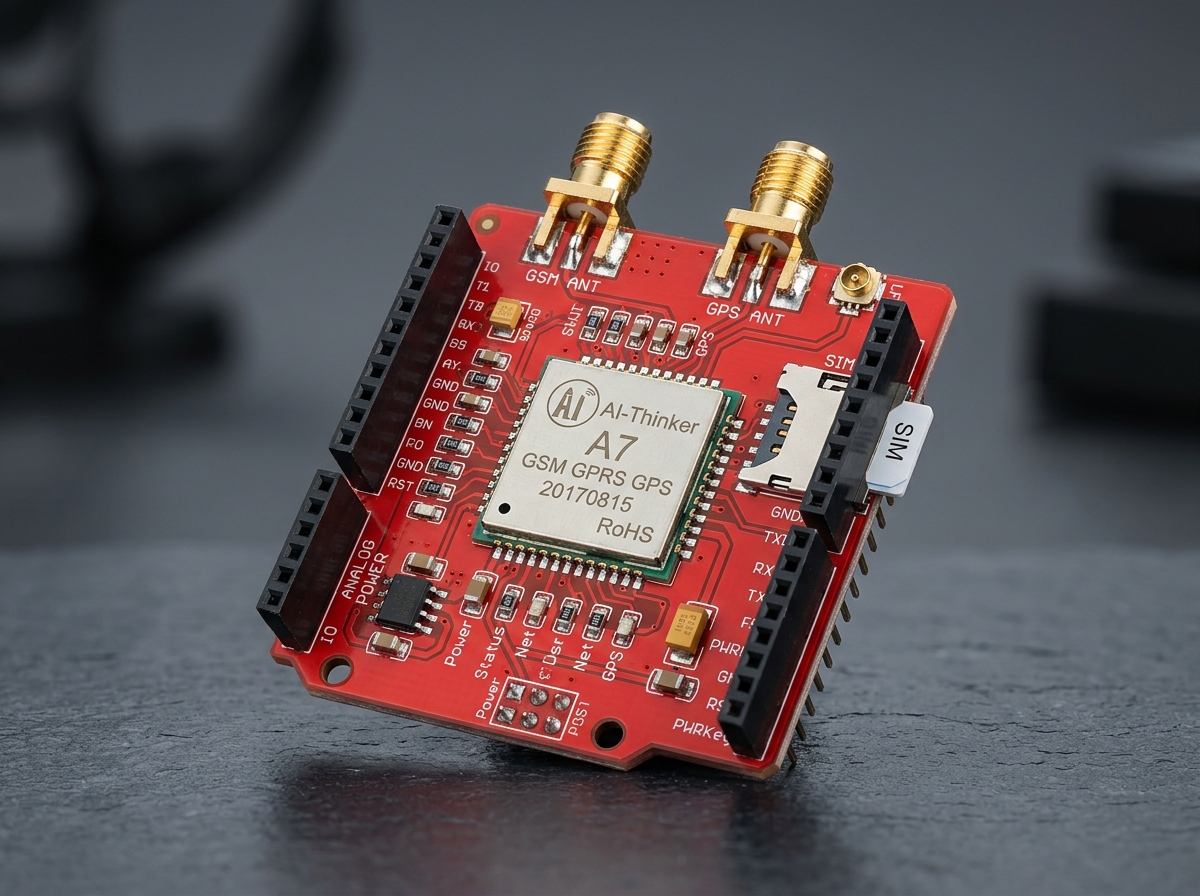

Stackable A7 GSM/GPS Arduino Shield
Stackable Uno/Mega format with external SMA antenna connectors, micro-SIM push tray, and serial routing jumpers.

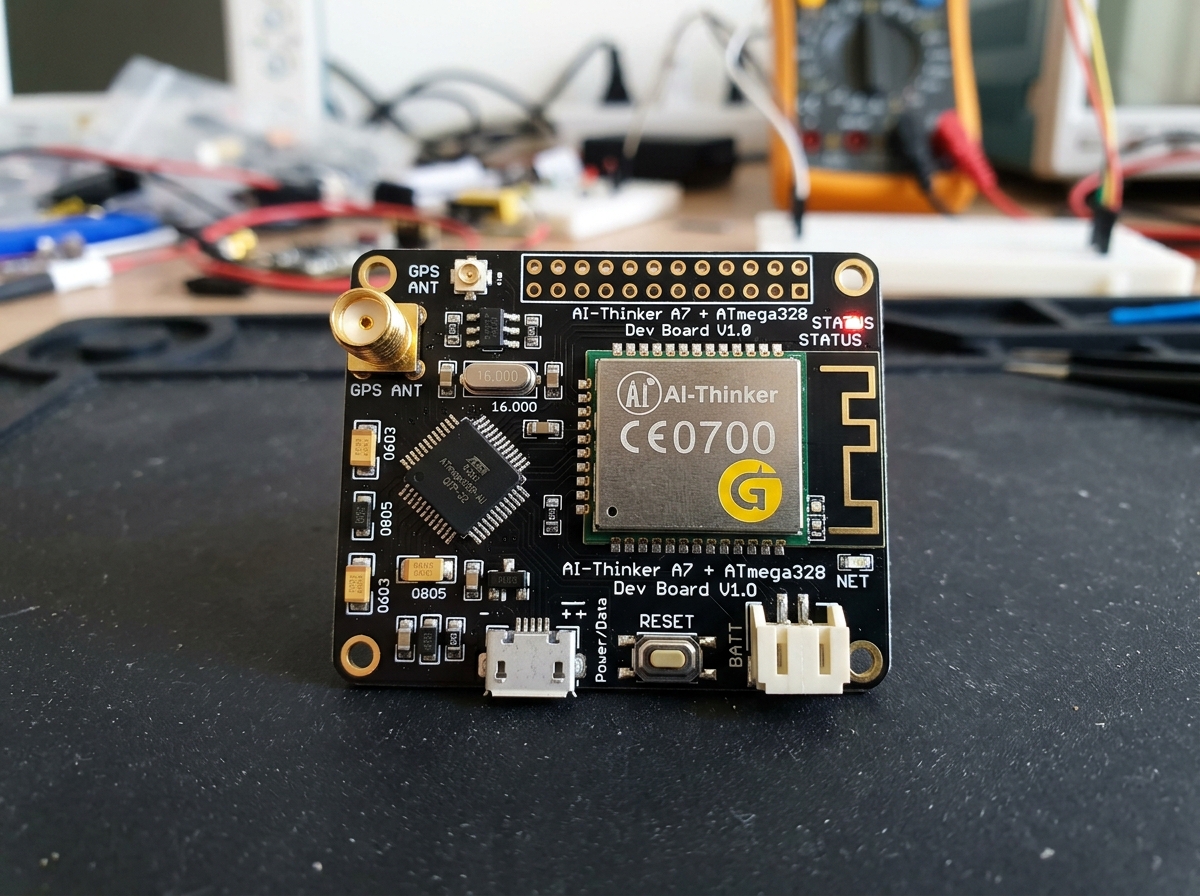

A7 + ATmega328P Telematics Tracker
Single-board commercial vehicle tracker with onboard ATmega328P, automotive 9V-36V input, and relay output.
In the Wild & Microcontroller Integrations
Real bench setups, dual-UART wiring harnesses, active GPS antenna setups, and remote outdoor solar tracking enclosures showing the A7 operating in real environments.

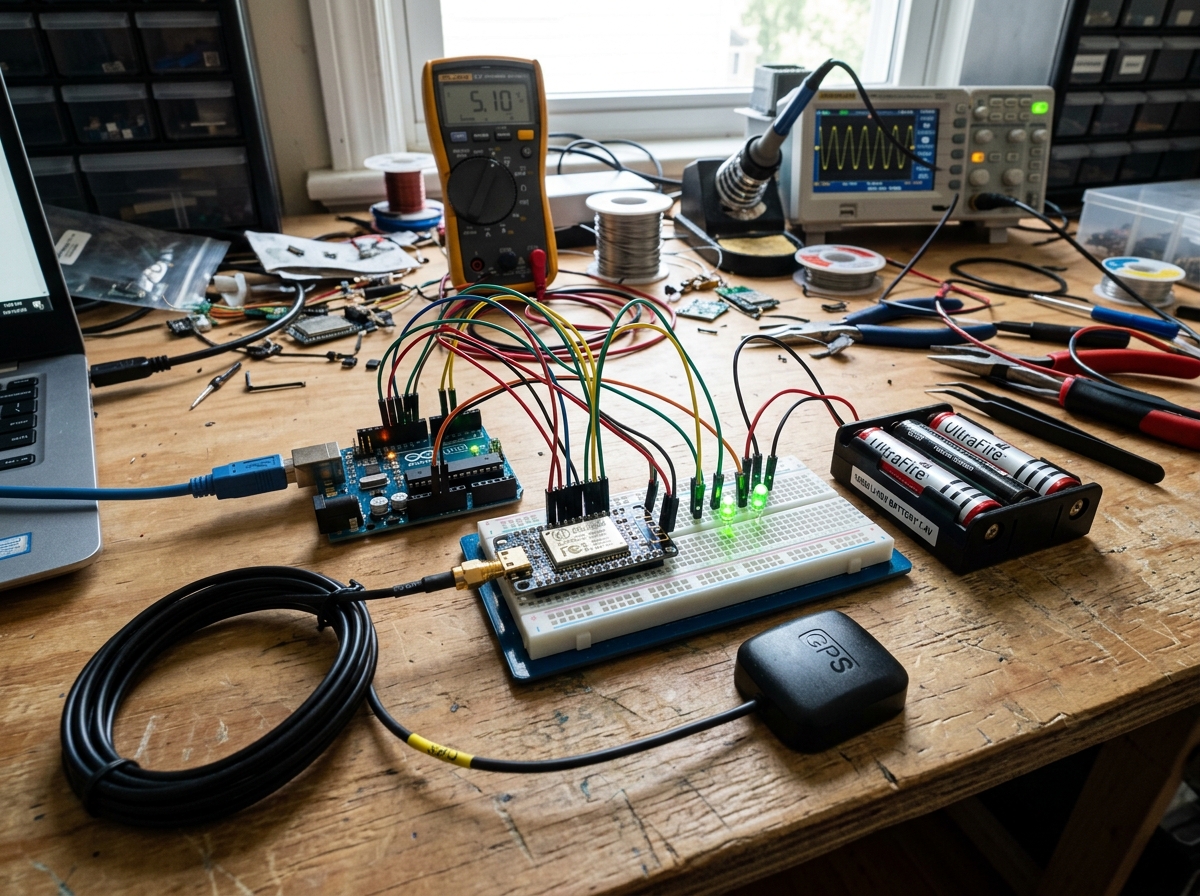

Dual-UART Arduino Uno Bench Setup
Workbench verification setup showing Arduino Uno wired to A7 with independent GPS_TXD parsing and external 5V 2.5A supply.
Solar & LiPo Weatherproof Tracker
Real IP67 outdoor installation with ESP32, 18650 Li-ion battery direct to VBAT, solar charging, and combo puck antenna.
Photography & Community Contributions
Do you have photos of an obscure A7-based board, custom breakout PCB, or unique field installation? We maintain this visual database to document every variant in existence before they vanish into scrap bins.
